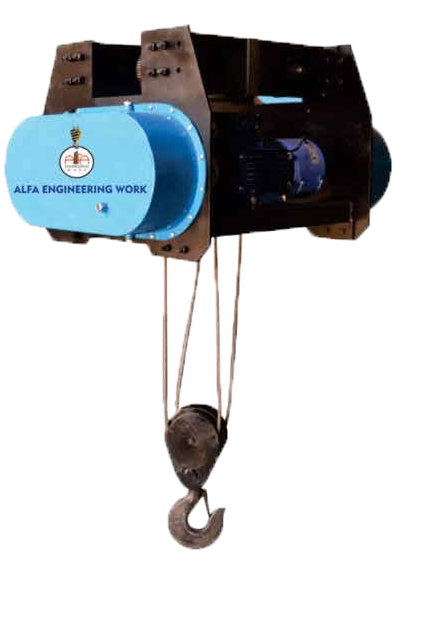

Electric Wire Rope Hoist

Electric Wire Rope Hoist Manufacturer

ALFA Wire Rope Hoists are designed in modular construction which greatly simplifies repairs & cuts down time. The special features are low head – room, spur/ helical gears running on antifriction ball bearing with oil bath lubrication, motors confirming to IS 325, “fall to Safe” brakes which automatically operate in case of any power failure, tested wire rope confirmation to IS 2266. forged hooks confirming to IS 3815 and push button stations operating at step down voltages of 110V: 42V or 24V.

ALFA Hoists are designed to accordance with ID 3938 – 1979 and are compact, rugged & elegant in appearance. To accommodate specific requirements, Hoists can also be built with micro speed arrangements (10% of normal hoists speed.) flexible trolleys to negotiable small radius, high speeds & high lifts, hoists suitable for steel mill duty, foundries & chemical plants.

Features:

  • Capacity Range : 0.5MT – 20MT
  • Height of Lift : Upto 30Mtrs.
  • Hoists Type : Manual / Power Operated
  • Models : Fixed Suspension, Geared Travel, Manual

    Push Pull, Fully Automatic, Creep Speed Type

  • Applications : Automobile Industries, Fabrication

    Shop Floors, Foundries, Rubber Industry

Note: Special requirements like higher speeds, higher lifts, low headroom and compact dimension will be offered against inquiry and Electric wire rope hoist manufacturer in India.

Electric Wire Rope Hoist

ALFA Wire Rope Hoists are designed in modular construction which greatly simplifies repairs & cuts down time. The special features are low head – room, spur/ helical gears running on antifriction ball bearing with oil bath lubrication, motors confirming to IS 325, “fall to Safe” brakes which automatically operate in case of any power failure, tested wire rope confirmation to IS 2266. forged hooks confirming to IS 3815 and push button stations operating at step down voltages of 110V: 42V or 24V.

ALFA Hoists are designed to accordance with ID 3938 – 1979 and are compact, rugged & elegant in appearance. To accommodate specific requirements, Hoists can also be built with micro speed arrangements (10% of normal hoists speed.) flexible trolleys to negotiable small radius, high speeds & high lifts, hoists suitable for steel mill duty, foundries & chemical plants

Features:

  • Capacity Range : 0.5MT – 20MT
  • Height of Lift : Upto 30Mtrs.
  • Hoists Type : Manual / Power Operated
  • Models : Fixed Suspension, Geared Travel, Manual

    Push Pull, Fully Automatic, Creep Speed Type

  • Applications : Automobile Industries, Fabrication

    Shop Floors, Foundries, Rubber Industry


Note: Special requirements like higher speeds, higher lifts, low headroom and compact dimension will be offered against inquiry Electric wire rope hoist manufacturer in India.
