Dock LEveler

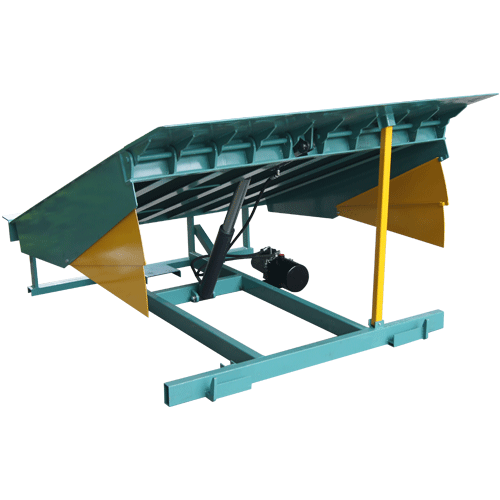

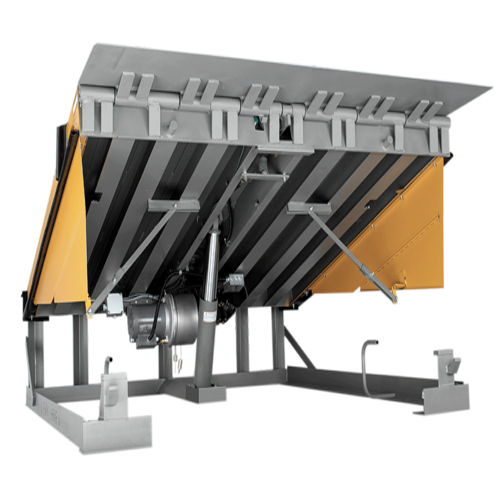

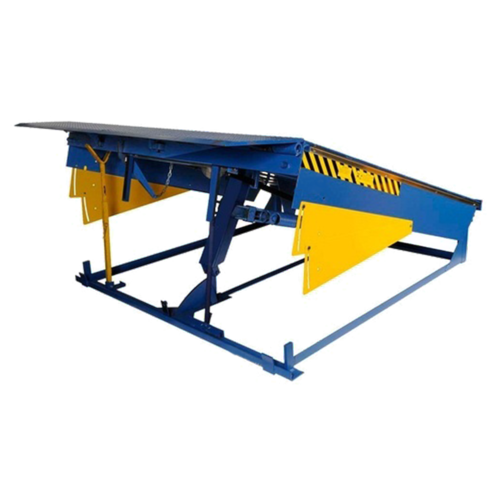

Dock Leveler

Dock Levelers are an adjustable ramp which compensates the difference in height. The lip arrangement on dock leveler bridges the gap between factory/warehouse and the bed of transport vehicle for easy movement of material handling equipment.

These equipment are the most effective solution for loading/unloading applications and are widely used in warehouses/factory/logistics area. It can lift up by 300mm and down by 250mm from the floor level.

Dock leveler is designed to lift a maximum weight of up 8,000kg. The series is available with an AC power pack unit. One HP motor with 3 phases 415 volts, hydraulic pump & valves of modular type of reputed brand and hydraulic cylinder with hard chrome piston rod. A control panel with wall mounted individual press on switch for deck and lip. The design comes with a paint finish of golden yellow and black shade.

Features:

  •  Capacity Range :8MT
  • Dock (L x W) :2100mm x 1850mm,
  • 2100mm x 2000mm 2750mm x 2150mm
  • Raised Height : 250mm
  • Lower Height : 300mm
  • Frame Height : 500mm
  • Applications : Automobile Industries, Pharma Industries, Storage Area, Transport Industries
  • Dock Leveler

    Dock Levelers are an adjustable ramp which compensates the difference in height. The lip arrangement on dock leveler bridges the gap between factory/warehouse and the bed of transport vehicle for easy movement of material handling equipment.

    These equipment are the most effective solution for loading/unloading applications and are widely used in warehouses/factory/logistics area. It can lift up by 300mm and down by 250mm from the floor level.

    Dock leveler is designed to lift a maximum weight of up 8,000kg. The series is available with an AC power pack unit. One HP motor with 3 phases 415 volts, hydraulic pump & valves of modular type of reputed brand and hydraulic cylinder with hard chrome piston rod. A control panel with wall mounted individual press on switch for deck and lip. The design comes with a paint finish of golden yellow and black shade.

    Features:

  •  Capacity Range :8MT
  • Dock (L x W) :2100mm x 1850mm,
  • 2100mm x 2000mm 2750mm x 2150mm
  • Raised Height : 250mm
  • Lower Height : 300mm
  • Frame Height : 500mm
  • Applications : Automobile Industries, Pharma Industries, Storage Area, Transport Industries
